Configuring and using token exchange

Consider this typical token exchange flow:

Many other use-cases exist for token exchange, but the preceding example is the most typical.

For standard token exchange, token-exchange-standard:v2 is enabled by default. However, you also need to enable the Standard token exchange switch for the client that is supposed to send token exchange requests, such as the requester-client from the previous example. Note that requester-client must be a confidential client. Also, as is the case for other grant requests, the token exchange requests must be authenticated by the appropriate client authentication method that is configured for the client.

The parameters are aligned with the Token exchange specification, which are described as follows:

A successful response is returned in the JSON format. It contains similar parameters such as the response from other grants. The following are some token exchange specifics of the more notable parameters:

The scope parameter in the token exchange request has the same meaning as other grants. This parameter is optional. When it is omitted, the effective client scopes used in the request are the Default client scopes of the requester-client. When this parameter is used, the effective client scopes are the default scopes together with the Optional client scopes

By default, the used client scopes will add the audiences to the aud claim of the token based on the used client scopes and client roles as specified in the Audience documentation.

The audience parameter can be used for filtering of audiences, so that the aud claim will contain only the audiences specified by the audience parameter. Similarly the client roles in the token will be filtered and the token will have only the client roles of the clients specified by the audience parameter.

In addition, the audience parameter can be used to potentially filter client scopes as well. It works in a manner that is similar to Client scope permission for users. If the client scope does not contain any client roles (for example, it contains zero roles or it contains only realm roles), no additional filtering occurs for client scopes. However, if the client scope contains any client role mappings, it must include some client roles of the clients requested by the audience parameter. Composite roles are also included for consideration. If the client scope contains no client roles of the clients requested by the audience, the client scope will be filtered.

These additional points clarify the behavior of token exchange.

While the preceding sections fully detail standard and legacy token exchange, the following is an overall summary that compares the two token exchange methods.

In Keycloak, token exchange is the process of using a set of credentials or token to obtain an entirely different token. A client may want to invoke on a less trusted application so it may want to downgrade the current token it has. A client may want to exchange a Keycloak token for a token stored for a linked social provider account. You may want to trust external tokens minted by other Keycloak realms or foreign IDPs. A client may have a need to impersonate a user. Here’s a short summary of the current capabilities of Keycloak around token exchange.

Token exchange in Keycloak is a very loose implementation of the OAuth Token Exchange specification at the IETF. We have extended it a little, ignored some of it, and loosely interpreted other parts of the specification. It is a simple grant type invocation on a realm’s OpenID Connect token endpoint.

It accepts form parameters (application/x-www-form-urlencoded) as input and the output depends on the type of token you requested an exchange for. Token exchange is a client endpoint so requests must provide authentication information for the calling client. Public clients specify their client identifier as a form parameter. Confidential clients can also use form parameters to pass their client id and secret, Basic Auth, or however your admin has configured the client authentication flow in your realm.

With an internal token to token exchange you have an existing token minted to a specific client and you want to exchange this token for a new one minted for a different target client. Why would you want to do this? This generally happens when a client has a token minted for itself, and needs to make additional requests to other applications that require different claims and permissions within the access token. Other reasons this type of exchange might be required is if you need to perform a "permission downgrade" where your app needs to invoke on a less trusted app and you don’t want to propagate your current access token.

You can exchange a realm token for an external token minted by an external identity provider. This external identity provider must be configured within the Identity Provider section of the Admin Console. Currently only OAuth/OpenID Connect based external identity providers are supported, this includes all social providers. Keycloak does not perform a backchannel exchange to the external provider. So if the account is not linked, you will not be able to get the external token. To be able to obtain an external token one of these conditions must be met:

Finally, the external identity provider must have been configured to store tokens, or one of the above actions must have been performed with the same user session as the internal token you are exchanging.

If the account is not linked, the exchange response will contain a link you can use to establish it. This is discussed more in the Making the Request section.

You can trust and exchange external tokens minted by external identity providers for internal tokens. This can be used to bridge between realms or just to trust tokens from your social provider. It works similarly to an identity provider browser login in that a new user is imported into your realm if it doesn’t exist.

When the exchange is complete, a user session will be created within the realm, and you will receive an access and or refresh token depending on the requested_token_type parameter value. You should note that this new user session will remain active until it times out or until you call the logout endpoint of the realm passing this new access token.

These types of changes required a configured identity provider in the Admin Console.

For internal and external token exchanges, the client can request on behalf of a user to impersonate a different user. For example, you may have an admin application that needs to impersonate a user so that a support engineer can debug a problem.

You can make an internal token exchange request without providing a subject_token. This is called a direct naked impersonation because it places a lot of trust in a client as that client can impersonate any user in the realm. You might need this to bridge for applications where it is impossible to obtain a subject token to exchange. For example, you may be integrating a legacy application that performs login directly with LDAP. In that case, the legacy app is able to authenticate users itself, but not able to obtain a token.

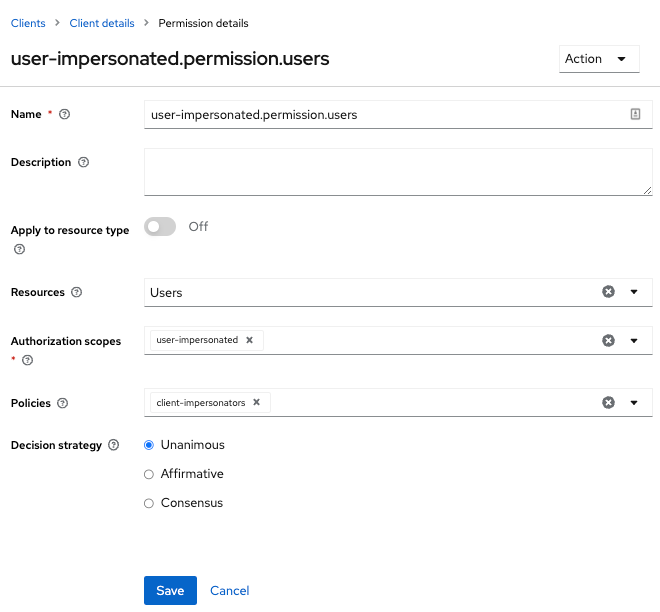

When granting clients permission to exchange, you don’t necessarily manually enable those permissions for each and every client. If the client has a service account associated with it, you can use a role to group permissions together and assign exchange permissions by assigning a role to the client’s service account. For example, you might define a naked-exchange role and any service account that has that role can do a naked exchange.

When you start allowing token exchanges, there are various things you have to both be aware of and careful of.

The first is public clients. Public clients do not have or require a client credential in order to perform an exchange. Anybody that has a valid token will be able to impersonate the public client and perform the exchanges that public client is allowed to perform. If there are any untrustworthy clients that are managed by your realm, public clients may open up vulnerabilities in your permission models. This is why direct naked exchanges do not allow public clients and will abort with an error if the calling client is public.

It is possible to exchange social tokens provided by Facebook, Google, etc. for a realm token. Be careful and vigilante on what the exchange token is allowed to do as it’s not hard to create fake accounts on these social websites. Use default roles, groups, and identity provider mappers to control what attributes and roles are assigned to the external social user.

Direct naked exchanges are quite dangerous. You are putting a lot of trust in the calling client that it will never leak out its client credentials. If those credentials are leaked, then the thief can impersonate anybody in your system. This is in direct contrast to confidential clients that have existing tokens. You have two factors of authentication, the access token and the client credentials, and you’re only dealing with one user. So use direct naked exchanges sparingly.
